Product Introduction

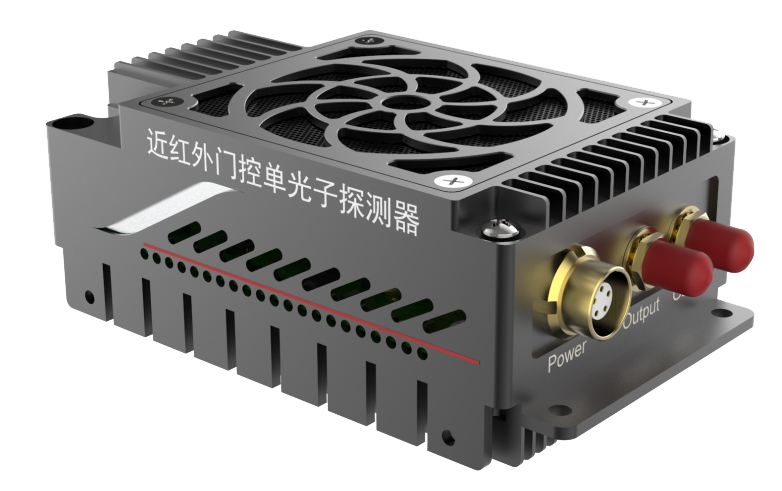

The WF-NRGM200 series is a single-photon detector module independently developed by our company. It can be used to detect single-photon level signals or weak signals. The device uses an indium gallium arsenide avalanche photodiode as the photosensitive element, and employs various technologies such as gated driving and dead-time suppression to achieve low dark counts and afterpulsing, reaching an internationally leading level. In recent years, it has been widely applied in scientific research fields such as quantum optical measurement and quantum secure communication, becoming a core device for optoelectronic conversion in quantum secure communication.
| parameters | Technical Indicators |
|---|---|
| Response Wavelength | 1000nm~1650nm |
| Detection Efficiency | 15%~30% |
| Post-pulse | ≤1% |
| External Trigger Frequency | 1~200MHz |
| Scheme Count | ≤200cps |
| Dead time | 1 µs, 2 µs, 5 µs adjustable |
| Detection Gate Width | 1~5 ns (default 1.5 ns) |
| Power Consumption | ≤15W |
| Control Interface | RS232 Serial Port |
| Operating Temperature | 0℃~40℃ |
| Product Dimensions | 110mm×60mm×44mm |
User Operating Instructions
Device Management: Supports configuration management via serial port
typical application
Single-photon detection and calibration, laser ranging, medical research, high-resolution spectral measurement, quantum secure communication
Key Features
Ultra-low dark count and afterpulse probability
High stability: thermostatic control design eliminates the impact of temperature drift on indicators
Trigger method: external trigger
The detection gate width is adjustable and can accommodate different light sources and systems.
Easy to maintain, integrated design, supports remote real-time anomaly monitoring
