Product Overview

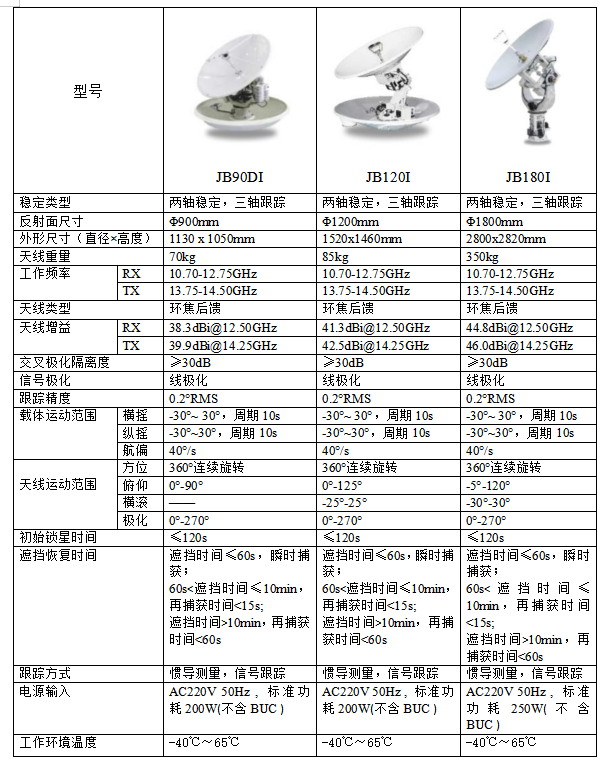

The JB series shipborne mobile satellite communication system is a Ku-band mobile satellite antenna designed for shipborne and offshore platform environments. It features high gain, strong mobility, excellent tracking performance, and minimal adjacent satellite interference. It can enable carriers to track target satellites in real-time during movement and conduct uninterrupted multimedia communications—including voice, data, and images—with ground main stations or other small stations. It meets the communication needs of ships, platforms, and similar carriers under mobile conditions and is widely applicable to domestic and international shipborne and platform projects.
Product Features:
Capable of automatically collecting and outputting the carrier's position and attitude information in real time;
One-click startup, the antenna automatically locates and orients itself, and automatically tracks the user-specified target satellite;
Multi-satellite position storage function, capable of storing the positional parameters of more than 10 satellites;
Able to record and display the operating status of the antenna in real time;
There are two satellite tracking methods: real-time automatic tracking and manual tracking.
Has power-off memory and protection functions;
It has power-on self-test and fault alarm functions.

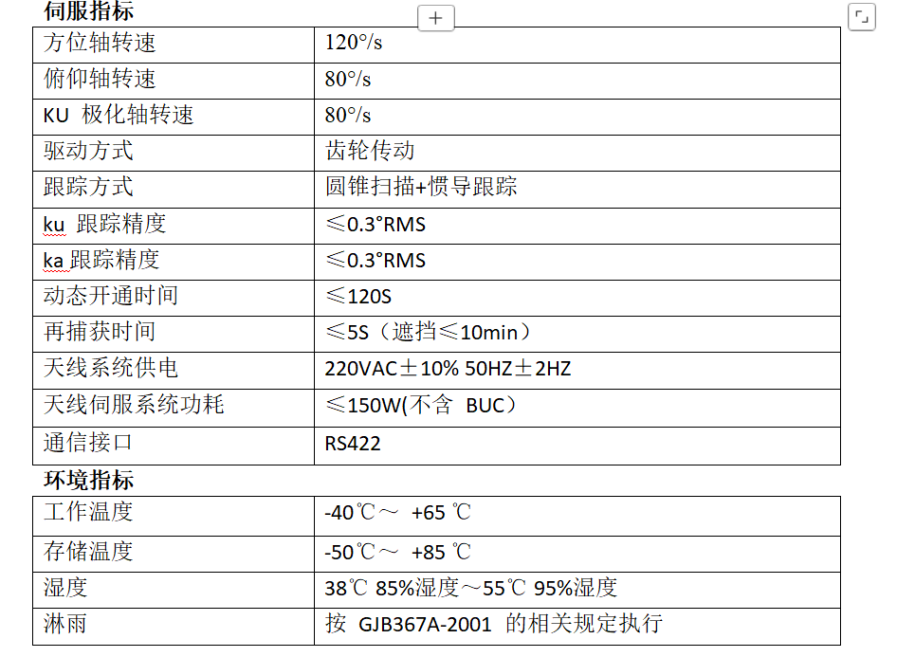

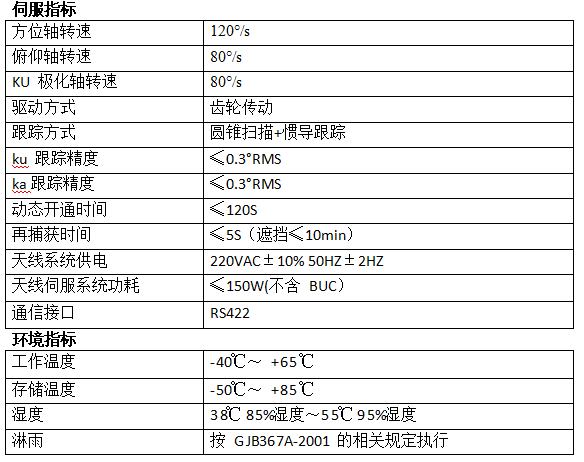

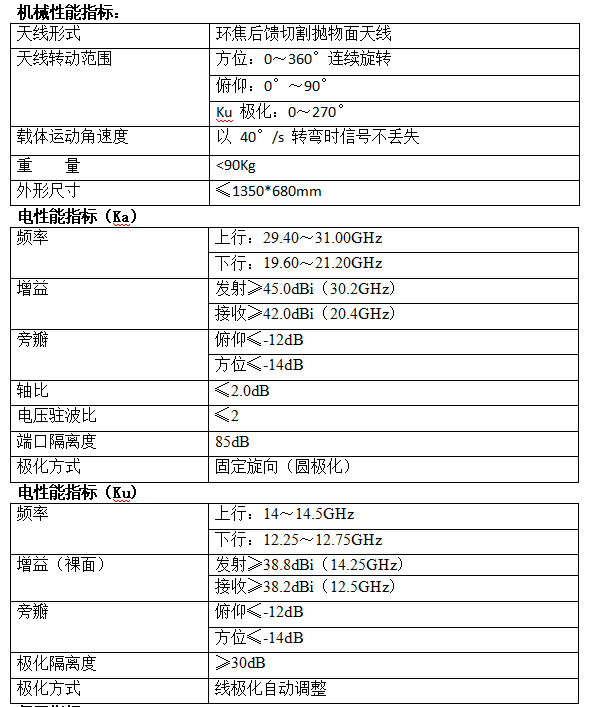

. The 9-meter Ku&Ka shipborne dual-band segmented parabolic dynamic satellite antenna is a satellite communication antenna designed according to dual-band application requirements. Based on the functional needs of dual-band antennas, this system can operate in both the Ku band and the Ka band. The antenna can achieve automatic tracking of target satellites, featuring high gain, high-precision tracking, short acquisition time, and the ability to withstand harsh environments. ...
Product Features:
- Transmission of signals in the Ka and Ku frequency bands, reception of signals in the Ka and Ku frequency bands
- Polarization automatic adjustment operation, beacon and carrier reception functions
- Capable of automatically collecting and outputting the carrier's position and attitude information in real time
- One-click startup, the antenna automatically locates and orients itself, and automatically tracks the user-specified target satellite;
- Multi-Seat Storage Function
- Hardware and Software Limit Function
- Control of ACU Monitoring Equipment
Currently, the majority of customer demands for shipborne mobile satellite communications are for parabolic antennas. Our company offers satellite communication antennas of various apertures, with the largest reaching an aperture of 6.2 meters. Additionally, we provide flat-panel vehicle-mounted mobile satellite communication antennas with equivalent apertures of 0.3 meters, 0.72 meters, 0.8 meters, and 0.9 meters, as well as stationary satellite communication systems with equivalent apertures of 1.2 meters and 2.4 meters. We can also customize vehicle-mounted, shipborne, and airborne mobile satellite communication systems according to customer requirements.
