1. Product Overview
The multi-target telemetry receiving antenna can automatically and independently align with four telemetry targets within a 200 MHz bandwidth. Utilizing a digital two-dimensional multi-beam horizontal turntable scheme, it can achieve electronic scanning within a 90-degree horizontal/elevation range and mechanical scanning over a 360-degree horizontal range, thereby enabling simultaneous detection, tracking, and telemetry tasks for multiple targets in different azimuths. The monitoring and management host software can realize real-time display and monitoring of multiple telemetry targets, meeting the future needs of measurement and control systems for multi-target, digital, flexible, and reliable operations, and possesses promising application prospects.
2. Main Indicators
(1) Operating frequency band: 2200MHz～2400MHz (can be extended as needed);
(2) Operating bandwidth: 200 MHz;
(3) Support telemetry system: All (this system only implements target tracking and signal passthrough);
(4) Number of antenna units: 32;
(5) Total antenna gain: ≥20dB (central beam), 18dB (beam within 90 degrees);
(6) Antenna polarization: simultaneously supports ±45-degree right-hand and left-hand circular polarization (optional independent polarization output or
Output after polar synthesis);
(7) Total noise figure of the receiving link: < 2 dB;
(8) Telemetry range: needs to be determined based on the beacon transmission power, beacon antenna gain, signal bandwidth, and reception
Antenna gain and estimation of the receive chain noise figure;
(9) Horizontal electronic scanning coverage beamwidth: 90 degrees;
(10) Pitch electronic scanning coverage beamwidth: elevation angle 0 degrees to 90 degrees;
(11) Horizontal mechanical scanning angle: continuous 360-degree rotation;
(12) Output signal interface: 1 optical fiber (integrated with 4 target baseband information), 4 RF ports
(4 target RF signals);
(13) Output RF frequency: 2200MHz～2400MHz (configurable);
(14) Target differentiation: frequency division (can also be upgraded to spatial division);
(15) Minimum frequency interval for target differentiation: 2 MHz. 3. Internal product architecture

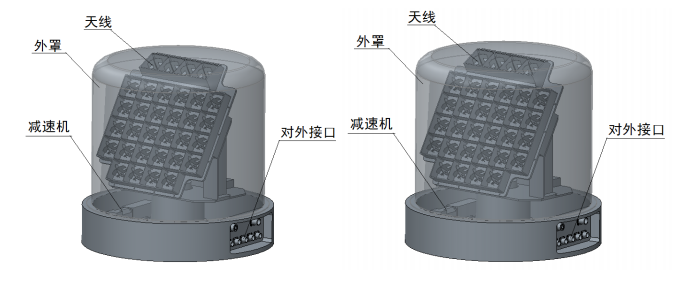

3. Internal Product Architecture

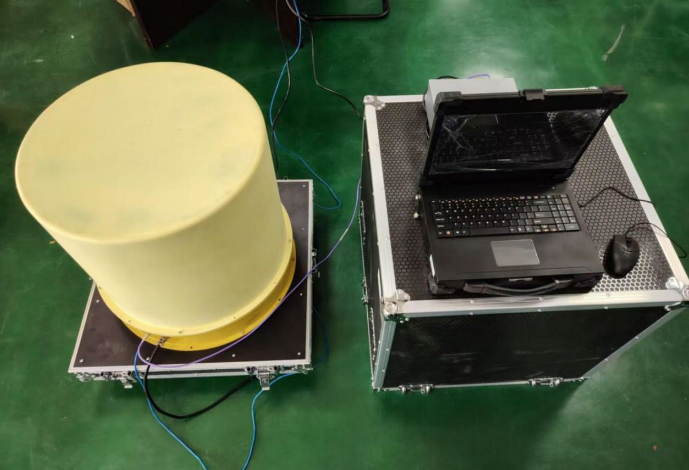

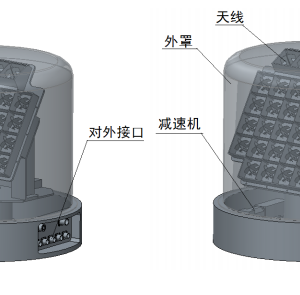

4. Product Appearance
